Muz Tech 5G Sub-6GHz LGA Module RG500L Series with Compact 41mm × 44mm × 2.75mm Size and Extended -40°C to +85°C Temperature Range

Model Number : RG500L-EU

Place of Origin : China

Brand Name : qt

Certification : CE

MOQ : 1

Price : $198-228

Chipset : 5G LGA modules

Model : rg500l

GNSS : GPS/BDS/GLONASS/Galileo

MIMO : support

Dimensions : 41.0*44.0*2.75 mm

Antenna ports : Cellular: 8, GNSS: 1

CPU cores : Quad-core

CPU speed : 2GHz

5G modes : NSA and SA

Max DL rate : 4.67Gbps (SA), 3.74Gbps (NSA)

Max UL rate : 1.25Gbps (SA), 1.46Gbps (NSA)

Temperature range : -40°C to +85°C

Form factor : LGA

Network architectures : Option 3x, 3a, 3, 2

Backward compatibility : 4G/3G

Contact Now

Products Description

Muz Tech 5G Sub-6GHz LGA Module RG500L Series with Compact 41mm × 44mm × 2.75mm Size and Extended -40°C to +85°C Temperature Range

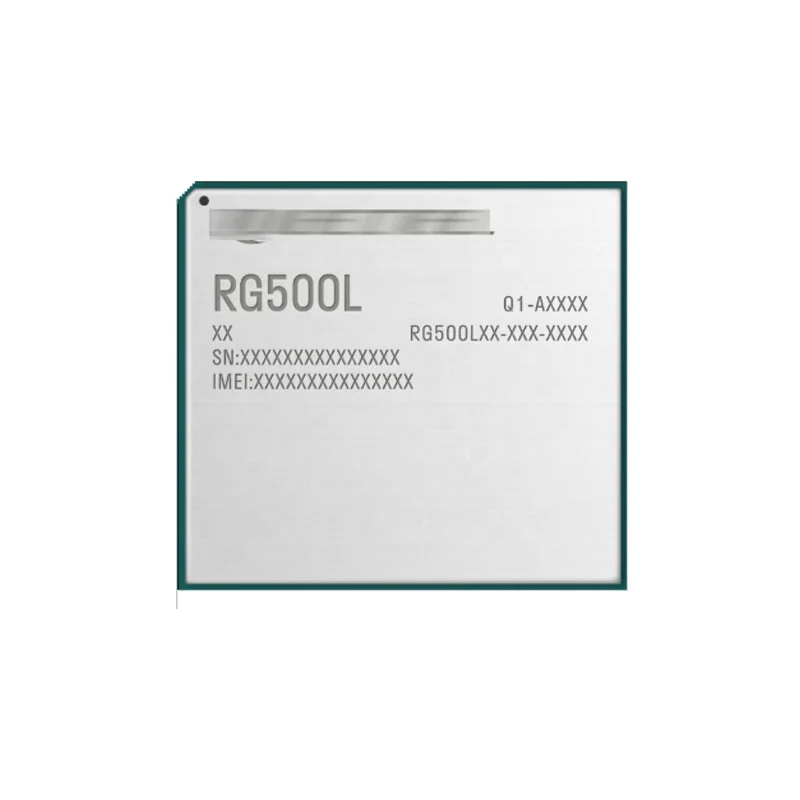

5G RG500L series

The RG500L is a series of 5G sub-6GHz LGA modules optimized specially for IoT and eMBB applications. By adopting 3GPP Release 15
technology, the module supports both 5G NSA and SA modes. It supports Option 3x, 3a, 3 and Option 2 network architectures and is
backwards compatible with 4G/3G network.

The RG500L is an industrial-grade module for industrial and commercial applications only. It includes 2 variants, the RG500L-EU
(for use in Europe, the Middle East, Africa, Oceania and Brazil) and RG500L-NA (for use in North America). The module also combines high-speed wireless connectivity with an embedded multi-constellation and high sensitivity GNSS(GPS/BDS/GLONASS/Galileo)
receiver for positioning

The RG500L has a quad-core CPU @2GHz, and is integrated with a network hardware accelerator and VPN hardware accelerator, which allows the module to support a wide range of IoT and eMBB applications such as 5G wireless routers, CPE, MiFi, business routers,and home gateways.

* 5G Sub-6GHz module

* LGA form factor

* 41mm × 44mm × 2.75mm

* Max. data rate SA Sub-6GHz 4.67Gbps (DL)/1.25Gbps (UL)

* Max. data rate NSA Sub-6GHz 3.74Gbps(DL)/1.46Gbps(UL)

* Extended temperature range of -40°C to +85°C
